RollOffCaddy Container Mover
- Moves roll off or self-contained compactors up to 50K lbs.
- Option of 36 Volt 3 battery system or 48 Volt 4 battery system
- 0-2 mph forward/reverse
- Optional Pintle hitch or ball hitch and bracket attachments
- Performs well on inclines or on snow or ice
Safety
The trash room is the #1 area for injuries in a multi-family property.
Efficiency
The WasteCaddy can double efficiency in the trash room.
Risk
Reduce Workers Comp insurance premiums and lower your E-MOD rating.
- Applications
- Video
- Features and Specifications
- Dimensions
RollOffCaddy Applications
The battery-powered RollOffCaddy Container Mover relocates heavy roll off and compactor containers up to 50K lbs. for easy pick up from the trash hauler. With the optional Pintle or ball hitch attachments, it can access either end of the container, making hook up quick and easy.
The RollOffCaddy can lift up to 20K lbs. and can safely push or pull containers up to 50K lbs.
Unlike large trucks, the RollOffCaddy can be maneuvered easily in tightly confined areas. Company containers can be kept indoors and out of the elements until it needs to be relocated for pick-up.
RollOffCaddy Features and Specifications
Depending on the specifics of your application, five different RolloffCaddy options are available to fit your needs. See below for exact features and specifications by model. For the 6K and 15K Lift units, there are either 36v or 48v system options. The 23K Lift model comes with a 48v system.
There are additional options not listed below to customize your unit. Be sure to consult a sales engineer to discuss your specific application.
RollOffCaddy 6K Lift – 36v Standard Features
- Heavy Duty Steel Frame
- 3HP Motor/Differential Transaxle
- 2:1 Gear Reduction with Chain to
- Drive Tires
- High Tech Speed Controller
- Neutral Throttle Braking
- Adjustable Acceleration/Braking
- 6,000 lbs Hydraulic Cylinder Lift Kit
- 36v (3) 80 Amp Batteries
- Variable Speed Twist Grip
- 0-2 mph Forward/Reverse
- Battery Discharge Indicator
- Onboard Charger
- Safety Stop Switch
- Safety Horn
- (2) 16” Solid Tread Drive Tires
- (1) 12” Solid Tread Steer Tire
RollOffCaddy 6K Lift – 48v Standard Features
- 6HP Motor/Differential Transaxle
- 48v (4) 115 Amp Batteries
RollOffCaddy 15K Lift – 36v Standard Features
- Heavy Duty Steel Frame
- 3HP Motor/Differential Transaxle
- 5.6:1 Gear Reduction with Chain to
- Drive Tires
- High Tech Speed Controller
- Neutral Throttle Braking
- Adjustable Acceleration/Braking
- 15,000 lbs 10” Hydraulic Pump Lift Kit
- 36v(3) 150 Amp Batteries
- Variable Speed Twist Grip
- 0-2 mph Forward/Reverse
- Battery Discharge Indicator
- External Charger
- Safety Stop Switch
- Safety Horn
- (2) 18” Solid Tread Drive Tires (7“w)
- (1) 18” Solid Tread Steer Tire (4 1/2”w)
RollOffCaddy 15K Lift – 48v Standard Features
- 6HP Motor/Differential Transaxle
- 4:6:1 Gear Reduction
RollOffCaddy 23K Lift – 48v Standard Features
- Heavy Duty Steel Frame
- 6 HP Motor / Differential Transaxle
- 5.6:1 Gear Reduction with Chain to
- Drive Tires
- AC Digital Controller
- Neutral Throttle Braking
- Adjustable Acceleration/Braking
- 10” Hydraulic Pump Lift Kit
- 48v (4) 150 Amp/hr Batteries
- Variable Speed Thumb Twist Pad
- 0-1.30 mph Variable Forward/ Reverse
- Battery Discharge Indicator
- External Charger
- Safety Stop Switch
- Safety Horn
- Safety Strobe Flashing Light
- (4) 18“ Solid Tread Drive Tires
- (2) 18” Solid Tread Steer Tires
RollOffCaddy Dimensions
RollOffCaddy 6K Lift – 36v/48v
RollOffCaddy 15K Lift – 36v/48v

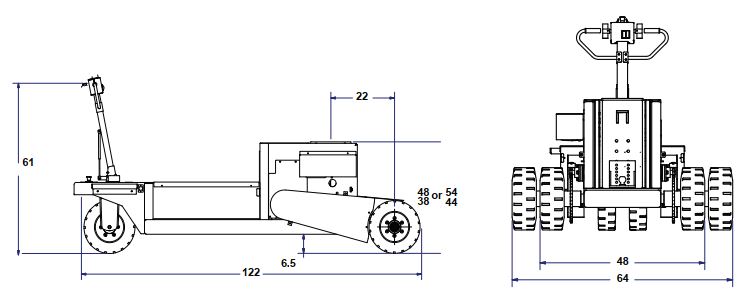

RollOffCaddy 23K Lift – 48v
